＠：经销品牌>>DORMER>>DORMER丝锥>>EX30-英国多马DORMER丝锥

DORMER

EX30

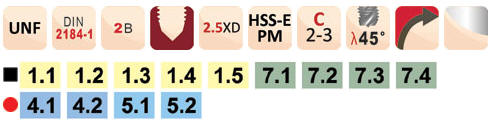

UNF 机用丝锥 螺旋槽 45°,提供HSS-E，直到新的可用库存
UNF TPI d1(mm) l1(mm) l2(mm) d2(mm) a(mm) l3(mm) z 底孔 l4(mm) 订货号 　 RMB未税面价
8 36 4.166 63 7 4.5 3.4 8 3 3.5 21 EX308-36 　 339.00
10 32 4.826 70 8 6.0 4.9 8 3 4.1 25 EX3010-32 　 359.00
1/4 28 6.350 80 10 7.0 5.5 8 3 5.5 30 EX301/4 　 361.00
5/16 24 7.938 90 12 8.0 6.2 9 3 6.9 35 EX305/16 　 462.00
3/8 24 9.525 100 15 10.0 8.0 11 3 8.5 39 EX303/8 　 545.00
7/16 20 11.112 100 15 8.0 6.2 9 3 9.9 - EX307/16 　 648.00
1/2 20 12.700 110 18 9.0 7.0 10 3 11.5 - EX301/2 　 648.00
5/8 18 15.875 110 20 12.0 9.0 12 4 14.5 - EX305/8 　 927.00
3/4 16 19.050 125 25 14.0 11.0 14 4 17.5 - EX303/4 　 1,340.00
7/8 14 22.225 140 25 18.0 14.5 17 4 20.4 - EX307/8 　 2,010.00
1" 12 25.400 160 30 18.0 14.5 17 4 23.25 - EX301 　 1,880.00
　
