＠：经销品牌>>DORMER>>DORMER丝锥>>E538-英国多马DORMER丝锥

DORMER

E538

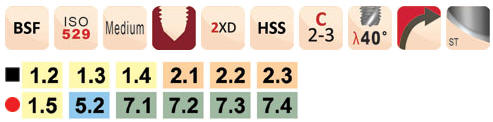

BSF 机用丝锥 螺旋槽 40°
BSF TPI d1(mm) l1(mm) l2(mm) d2(mm) a(mm) z 底孔 l4(mm) 订货号 　 RMB未税面价
1/4 26 6.350 66 13 6.3 5.00 3 5.3 26 E5381/4 1) 261.00
1/4 26 6.350 66 13 6.3 5.00 3 5.3 26 E5381/4BLUE 　 261.00
5/16 22 7.938 72 16 8.0 6.30 3 6.8 31 E5385/16 1) 303.00
5/16 22 7.938 72 16 8.0 6.30 3 6.8 31 E5385/16BLUE 　 303.00
3/8 20 9.525 80 18 10.0 8.00 3 8.3 34 E5383/8 1) 370.00
3/8 20 9.525 80 18 10.0 8.00 3 8.3 34 E5383/8BLUE 　 370.00
1/2 16 12.700 89 22 9.0 7.10 3 11 - E5381/2 1) 481.00
1/2 16 12.700 89 22 9.0 7.10 3 11 - E5381/2BLUE 　 481.00
1) 光亮
　
