DORMER

E533

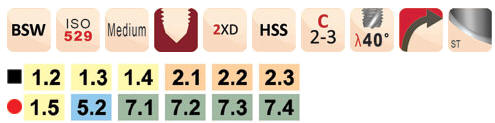

BSW 机用丝锥 螺旋槽 40°
BSW TPI d1(mm) l1(mm) l2(mm) d2(mm) a(mm) z 底孔 l4(mm) 订货号 　 RMB未税面价
1/8 40 3.175 48 12.5 3.15 2.50 3 2.55 12.5 E5331/8 1) 364.00
1/8 40 3.175 48 12.5 3.15 2.50 3 2.55 12.5 E5331/8BLUE 　 364.00
3/16 24 4.763 58 11 5.00 4.00 3 3.7 20 E5333/16 1) 222.00
3/16 24 4.763 58 11 5.00 4.00 3 3.7 20 E5333/16BLUE 　 222.00
1/4 20 6.350 66 13 6.30 5.00 3 5.1 26 E5331/4 1) 209.00
1/4 20 6.350 66 13 6.30 5.00 3 5.1 26 E5331/4BLUE 　 209.00
5/16 18 7.938 72 16 8.00 6.30 3 6.5 31 E5335/16 1) 242.00
5/16 18 7.938 72 16 8.00 6.30 3 6.5 31 E5335/16BLUE 　 242.00
3/8 16 9.525 80 18 10.00 8.00 3 7.9 34 E5333/8 1) 296.00
3/8 16 9.525 80 18 10.00 8.00 3 7.9 34 E5333/8BLUE 　 296.00
1/2 12 12.700 89 22 9.00 7.10 3 10.5 - E5331/2 1) 385.00
1/2 12 12.700 89 22 9.00 7.10 3 10.5 - E5331/2BLUE 　 385.00
5/8 11 15.875 102 24 12.50 10.00 3 13.5 - E5335/8 1) 585.00
5/8 11 15.875 102 24 12.50 10.00 3 13.5 - E5335/8BLUE 　 585.00
3/4 10 19.050 112 29 14.00 11.20 3 16.5 - E5333/4 1) 852.00
3/4 10 19.050 112 29 14.00 11.20 3 16.5 - E5333/4BLUE 　 852.00
1) 光亮
　
