＠：经销品牌>>DORMER>>DORMER丝锥>>E286-英国多马DORMER丝锥

DORMER

E286

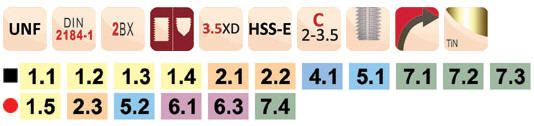

UNF 机用挤压丝锥，油槽
UNF TPI d1(mm) l1(mm) l2(mm) d2(mm) a(mm) l3(mm) z 底孔 l4(mm) 订货号 　 RMB未税面价
4 48 2.845 56 9 3.5 2.7 6 4 2.6 18 E2864-48 　 545.00
6 40 3.505 56 11 4.0 3.0 6 4 3.2 20 E2866-40 　 545.00
8 36 4.166 63 12 4.5 3.4 6 5 3.9 21 E2868-36 　 551.00
10 32 4.826 70 13 6.0 4.9 8 5 4.5 25 E28610-32 　 583.00
1/4 28 6.350 80 15 7.0 5.5 8 5 6.0 30 E2861/4 　 585.00
5/16 24 7.938 90 18 8.0 6.2 9 5 7.5 35 E2865/16 　 753.00
3/8 24 9.525 100 20 10.0 8.0 11 5 9.1 39 E2863/8 　 888.00
7/16 20 11.112 100 20 8.0 6.2 9 5 10.6 - E2867/16 　 1,055.00
1/2 20 12.700 100 21 9.0 7.0 10 5 12.1 - E2861/2 　 1,055.00
　

DORMER
