＠：经销品牌>>DORMER>>DORMER丝锥>>E033-英国多马DORMER丝锥

DORMER

E033

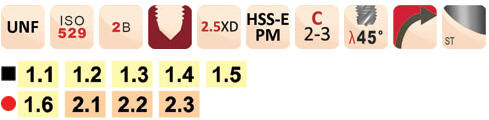

UNF 机用丝锥 螺旋槽 45°,提供HSS-E，直到新的可用库存
UNF TPI d1(mm) l1(mm) l2(mm) d2(mm) a(mm) l3(mm) z 底孔 l4(mm) 订货号 　 RMB未税面价
8 36 4.166 53 7 4.5 3.55 6 3 3.50 17 E0338-36 　 339.00
10 32 4.826 58 8 5.0 4.00 7 3 4.10 20 E03310-32 　 359.00
1/4 28 6.350 66 10 6.3 5.00 8 3 5.50 28 E0331/4 　 361.00
5/16 24 7.938 72 12 8.0 6.30 9 3 6.90 31 E0335/16 　 462.00
3/8 24 9.525 80 15 10.0 8.00 11 3 8.50 34 E0333/8 　 545.00
7/16 20 11.112 85 19 8.0 6.30 9 3 9.90 - E0337/16 　 648.00
1/2 20 12.700 89 22 9.0 7.10 10 3 11.50 - E0331/2 　 648.00
9/16 18 14.288 95 24 11.2 9.00 12 3 12.90 - E0339/16 　 831.00
5/8 18 15.875 102 24 12.5 10.00 13 4 14.50 - E0335/8 　 927.00
3/4 16 19.050 112 29 14.0 11.20 14 4 17.50 - E0333/4 　 1,340.00
7/8 14 22.225 118 29 16.0 12.50 16 4 20.40 - E0337/8 　 2,010.00
1" 12 25.400 130 35 18.0 14.00 18 4 23.25 - E0331 　 1,880.00
　
