＠：经销品牌>>DORMER>>DORMER铰刀>>B301-英国多马DORMER铰刀

DORMER

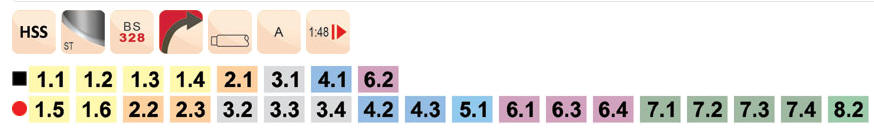

B301

1:48手用锥销铰刀
nom d1(mm) l1(mm) l2(mm) z a(mm) d2(mm) 订货号 　 RMB未税面价
1/16 1.10 51 25 4 1.2 1.63 B3011/16 1) 803.00
5/64 1.50 51 25 4 1.6 2.03 B3015/64 1) 707.00
3/32 1.75 57 32 4 2.0 2.41 B3013/32 1) 528.00
7/64 2.03 64 38 4 2.2 2.82 B3017/64 1) 674.00
1/8 2.30 70 44 4 2.5 3.23 B3011/8 1) 436.00
9/64 2.64 73 48 4 2.8 3.63 B3019/64 1) 668.00
5/32 2.95 76 51 4 3.1 4.01 B3015/32 1) 528.00
11/64 3.23 89 57 4 3.6 4.42 B30111/64 1) 685.00
3/16 3.50 102 70 4 4.0 4.95 B3013/16 1) 556.00
7/32 4.13 102 70 6 4.5 5.59 B3017/32 1) 657.00
1/4 4.64 117 86 6 5.0 6.43 B3011/4 2) 578.00
9/32 5.23 143 105 6 5.6 7.42 B3019/32 2) 750.00
5/16 5.84 143 105 6 6.3 8.03 B3015/16 2) 677.00
11/32 6.43 152 114 6 7.1 8.81 B30111/32 2) 850.00
3/8 7.03 165 127 6 8.0 9.68 B3013/8 2) 755.00
13/32 7.42 191 146 6 8.0 10.46 B30113/32 2) 1,065.00
7/16 8.21 191 146 6 9.0 11.25 B3017/16 2) 1,010.00
1/2 9.41 210 165 6 10.0 12.85 B3011/2 2) 1,425.00
1) 公差极限 + 0.0030 2) 公差极限 + 0.0050
　
